Our Service to You
We provide Engineering Services through our Parent Company CAD Global Inc. The data for all Brown Field Projects is extracted from existing documents, drawings and other data sources, 3d models and all the relationships are build using X4D. Final Product is fully Digitized Model of the Plant, with all the 1D/2D/3D assets linked.
Data Capture & QA/QC
Capturing and Integration of Data:
- Native Drawing and Documents
- Scanned Documents
- Tag Lists
- Datasheets
- QA/QC of extracted data
- PowerBI Report Dashboard

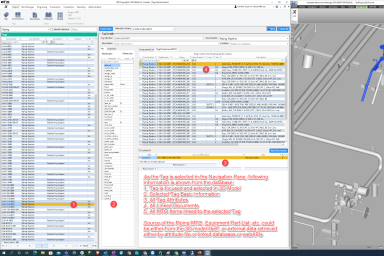

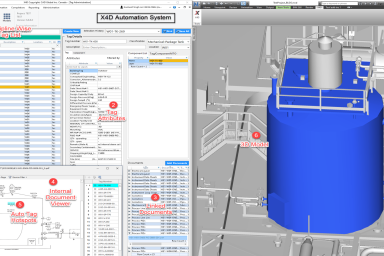

Digital Model Delivery
Integrated Digital Model:
- Project In-a-Box Delivery
- 3D Consolidation in Navisworks
- Integrated Drawings/Documents
- X4D Document Viewer
- System Agnostic and Unified Format Delivery
- Master Tag Registry
Cloud Setup
Project Setup in Cloud:
- Azure Cloud
- AWS Cloud
- Private Cloud
- Connected Azure Services
- Web-Based Data Access
- VPN Setup for Secured Access
Project Administration
Administration Tasks:
- X4D Project Setup
- Manage Project Roles and Access

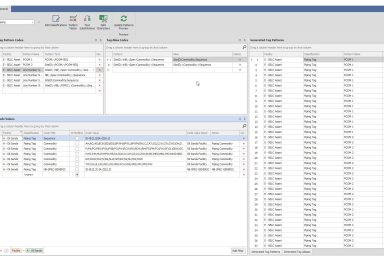

- Tag Naming Patterns
- Document Numbering Patterns
- Integrate 3D Models
- Navisworks and Forge
- Work Packages
- Progressing Rules
- Preservation Rules
- X4D Reporting
Contact for Services
For any Services, we are here to help. please contact:
X4D.Support@cadglobal.ca
Support.Desk@cadglobal.ca
X4D Systems
Systems Creation
Document Replication
Document Replication from Template:
- Rules for Document Numbers
- Rules based Tag ID Replacement
- AutoCAD, Office and PDF Files
X4D Data Import
X4D Data Import
